ARANDELAS

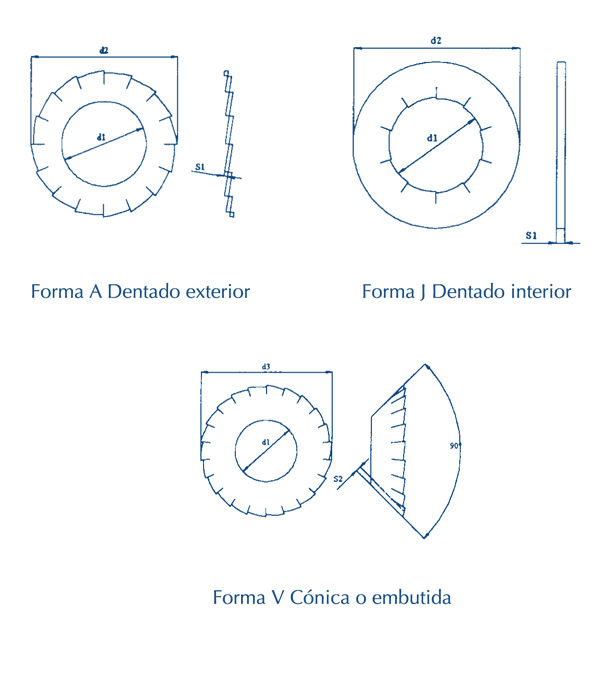

DIN 6798
| Ref. | Para tornillos métricos | d1 Nominal=mín | max. (d1) | d2 Nominal=mín. |
|---|---|---|---|---|
| MA03 | M-3 | 3,2 | 3,38 | 5,70 |
| MA03,5 | M-3,5 | 3,7 | 3,88 | 6,64 |
| MA04 | M-4 | 4,3 | 4,48 | 7,64 |
| MA05 | M-5 | 5,3 | 5,48 | 9,64 |
| MA06 | M-6 | 6,4 | 6,62 | 10,57 |
| MA07 | M-7 | 7,4 | 7,62 | 12,07 |
| MA08 | M-8 | 8,4 | 8,62 | 14,57 |
| MA09 | M-9* | 9,4 | 9,62 | 15,64 |
| MA10 | M-10 | 10,5 | 10,77 | 17,57 |
| MA11 | M-11* | 11,5 | 11,77 | 19,07 |
| MA12 | M-12 | 13,0 | 13,27 | 19,98 |
| MA13 | M-13* | 13,5 | 13,77 | 21,57 |
| MA14 | M-14 | 15,0 | 15,27 | 23,48 |
| MA15 | M-15* | 15,5 | 15,77 | 24,57 |
| MA16 | M-16 | 17,0 | 17,27 | 25,48 |
| MA18 | M-18 | 19,0 | 19,33 | 29,48 |
| MA19 | M-19* | 20,0 | 20,33 | 31,48 |
| MA20 | M-20 | 21,0 | 21,33 | 32,38 |
| MA22 | M-22 | 23,0 | 23,33 | 35,38 |
| MA24 | M-24 | 25,0 | 25,33 | 37,38 |
| MJ03 | M-3 | 3,2 | 3,38 | 5,70 |
| MJ04 | M-4 | 4,3 | 4,48 | 7,64 |
| MJ05 | M-5 | 5,3 | 5,48 | 9,64 |
| MJ06 | M-6 | 6,4 | 6,62 | 10,57 |
| MJ07 | M-7 | 7,4 | 7,62 | 12,07 |
| MJ08 | M-8 | 8,4 | 8,62 | 14,57 |
| MJ09 | M-9* | 9,4 | 9,62 | 15,64 |
| MJ10 | M-10 | 10,5 | 10,77 | 17,57 |
| MJ12 | M-12 | 13,0 | 13,27 | 19,98 |
| MJ13 | M-13* | 13,5 | 13,77 | 21,57 |
| MJ14 | M-14 | 15,0 | 15,27 | 23,48 |
| MJ18 | M-18 | 19,0 | 19,33 | 29,48 |
| MJ22 | M-22 | 23,0 | 23,33 | 35,38 |
| MJ24 | M-24 | 25,0 | 25,33 | 37,38 |
| MV04 | M-4 | 4,3 | 4,48 | |
| MV05 | M-5 | 5,3 | 5,48 | 14 |
| MV06 | M-6 | 6,4 | 6,62 | 11 |
| MV08 | M-8 | 8,4 | 8,62 | 14,50 |
| MV10 | M-10 | 10,5 | 10,77 | 20 |
| MV12 | M-12 | 13,0 | 13,27 | 26 |
| Referencia: |
|---|
