ANILLOS DE RETENCIóN

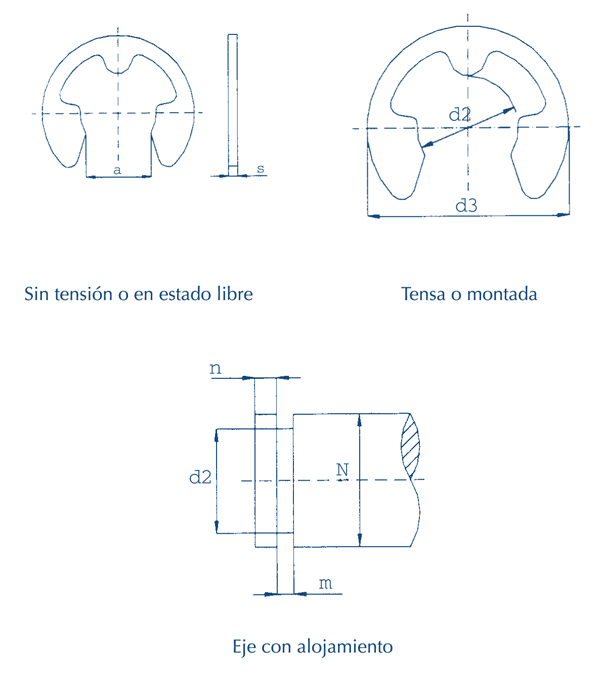

DIN 6799
| Ref. | d1 (N) | desde | hasta | Diámetro ranura d2 |
|---|---|---|---|---|
| N02 | 2 | 2 | 2,5 | 1,5 |
| N02,5 | 2,5 | 2,5 | 3,0 | 1,9 |
| N03 | 3 | 3 | 4,0 | 2,3 |
| N04 | 4 | 4 | 5,0 | 3,2 |
| N05 | 5 | 5 | 7,0 | 4,0 |
| N06 | 6 | 6 | 8,0 | 5,0 |
| N07 | 7 | 7 | 9,0 | 6,0 |
| N08 | 8 | 8 | 11,0 | 7,0 |
| N09 | 9 | 9 | 12,0 | 8 |
| N10 | 10 | 10 | 14,0 | 9,0 |
| N11 | 11 | 11 | 15,0 | 10,0 |
| N13 | 13 | 13 | 18,0 | 12,0 |
| N16 | 16 | 16 | 24,0 | 15,0 |
| N20 | 20 | 20 | 31,0 | 19,0 |
| N25 | 25 | 25 | 38,0 | 24,0 |
| Referencia: |
|---|
